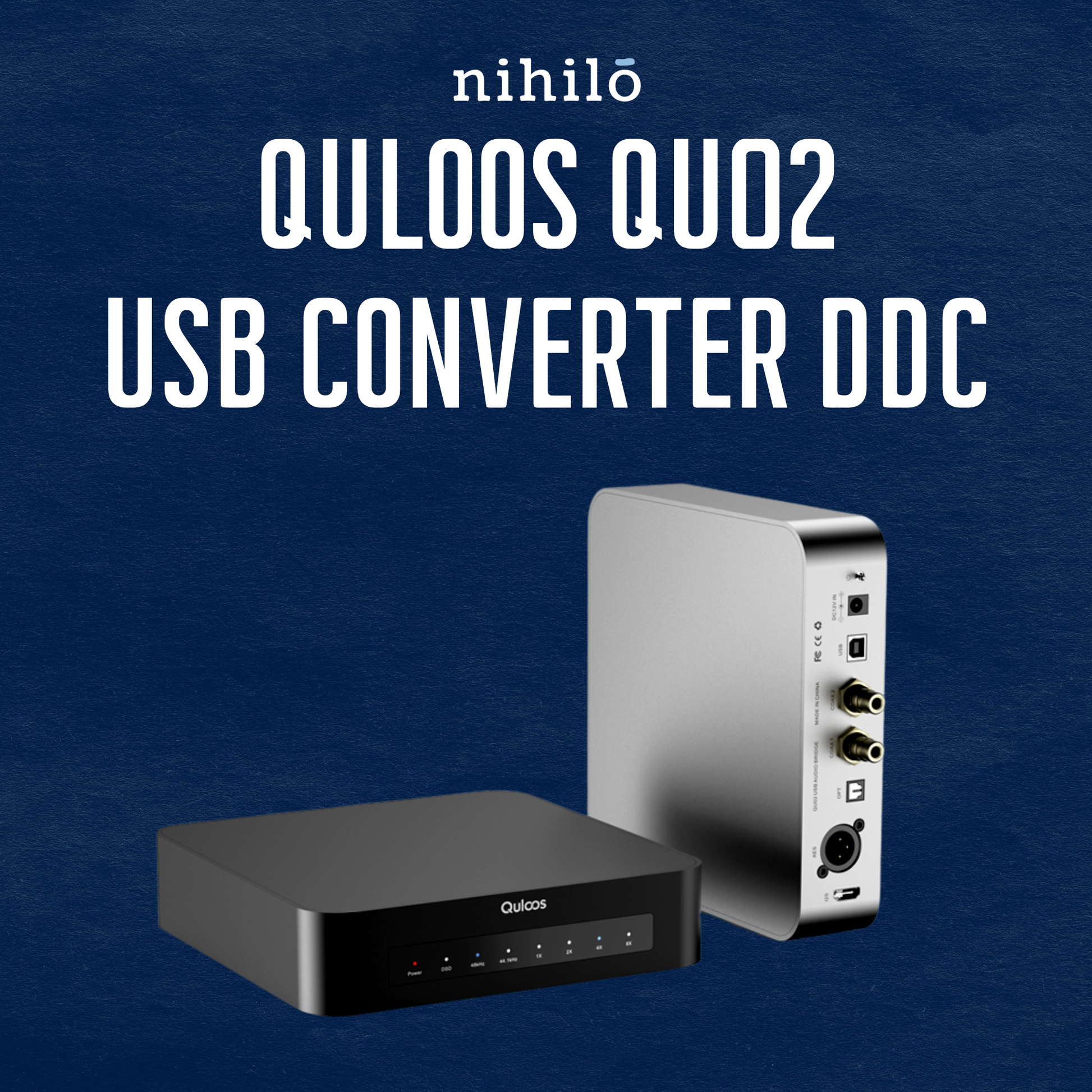

Quloos QU02 USB Bridge DDC

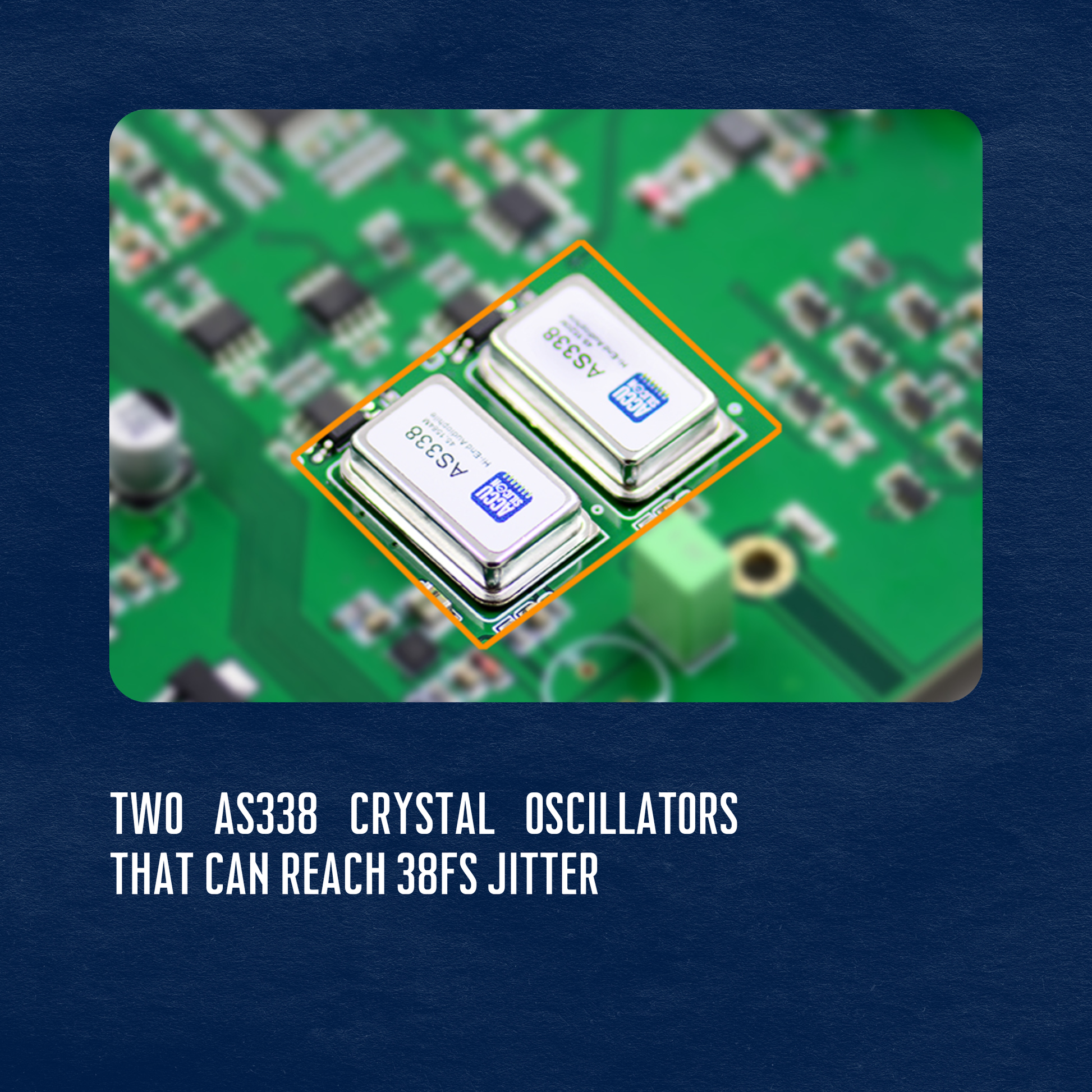

The QU02 is a USB converter to I2S/AES/OPT/COAX digital audio output. It features 2x AS338 master clocks for excellent jitter performance, and an elaborate low noise quality power supply so that the noise from a phone/laptop is isolated and eliminated.

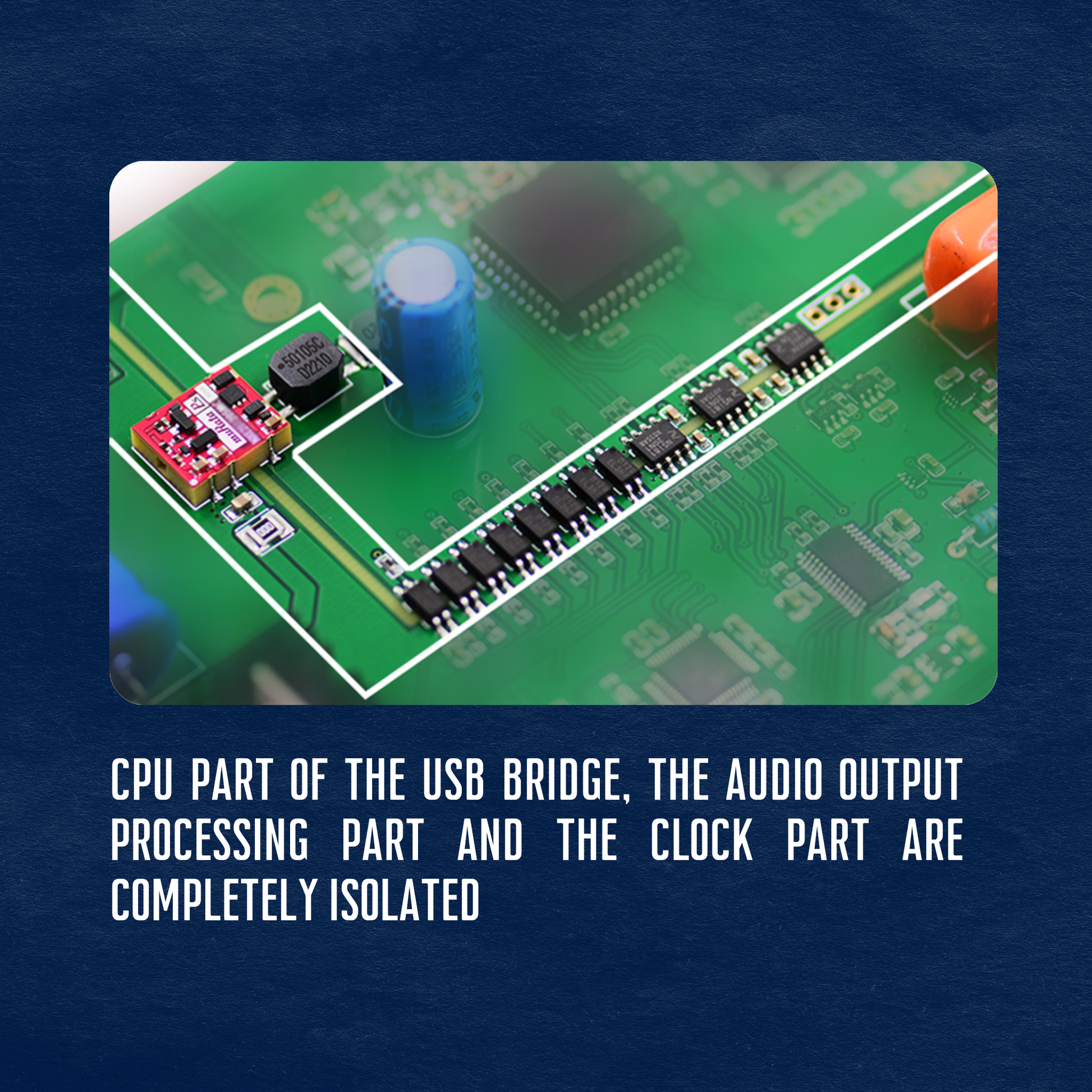

QU02 uses Murata power isolation module and completely abandons the 5V power supply from USB input, and draws power through a 12V DC-in power supply. This means that is sound is completely free from the influence of power supply from USB input. Hence, quality sound can now be achieved even with a USB connection from your phone or computer.

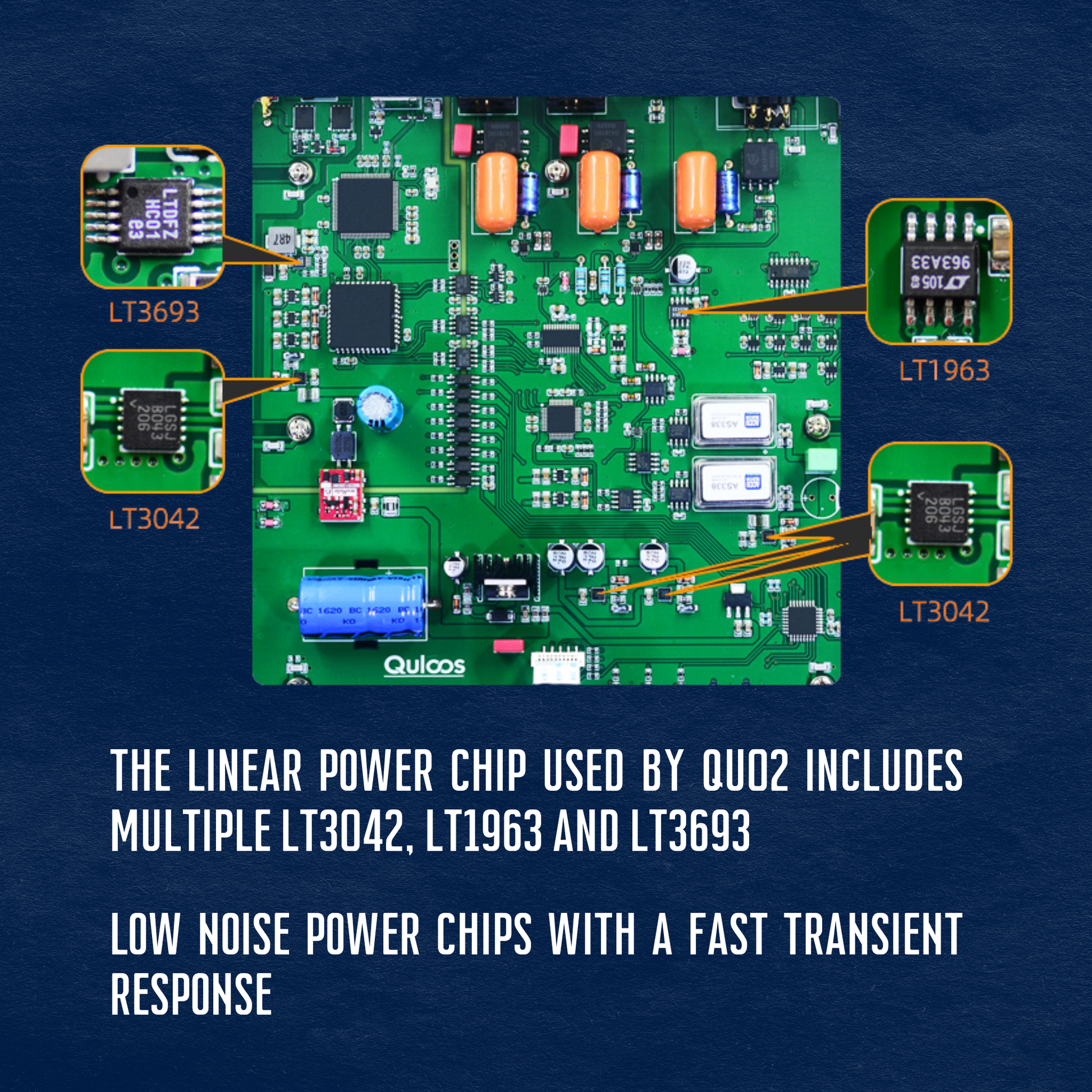

QU02 uses not only complex power circuit design and expensive power chips, and also uses the Philips axial electrolytic capacitor, Philips 135 electrolytic capacitor, Philips 030 axial electrolytic capacitor, Murata power source isolation module, Murata common mode inductance, WIMA film capacitor, ERO film capacitor, Panasonic SMD film capacitor.

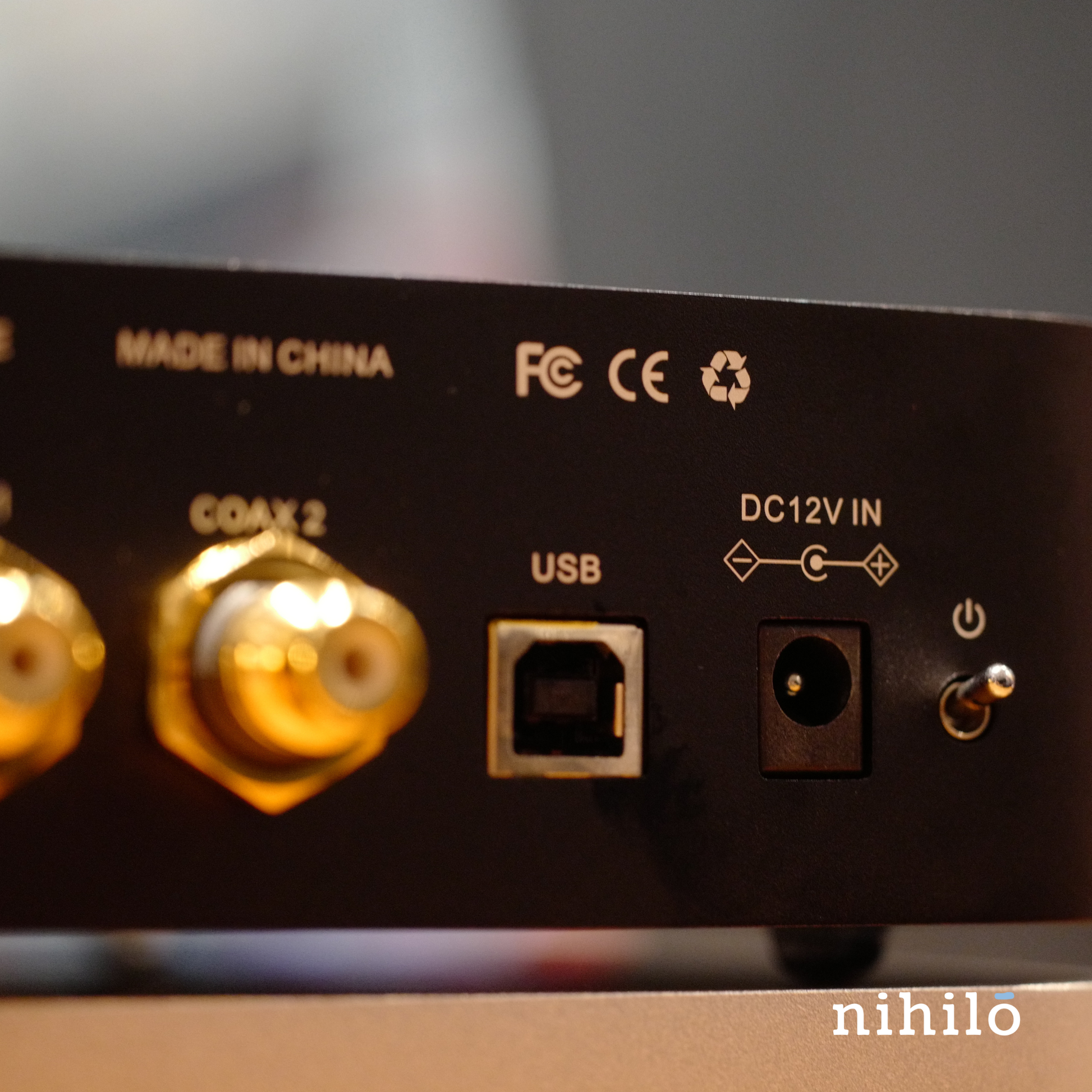

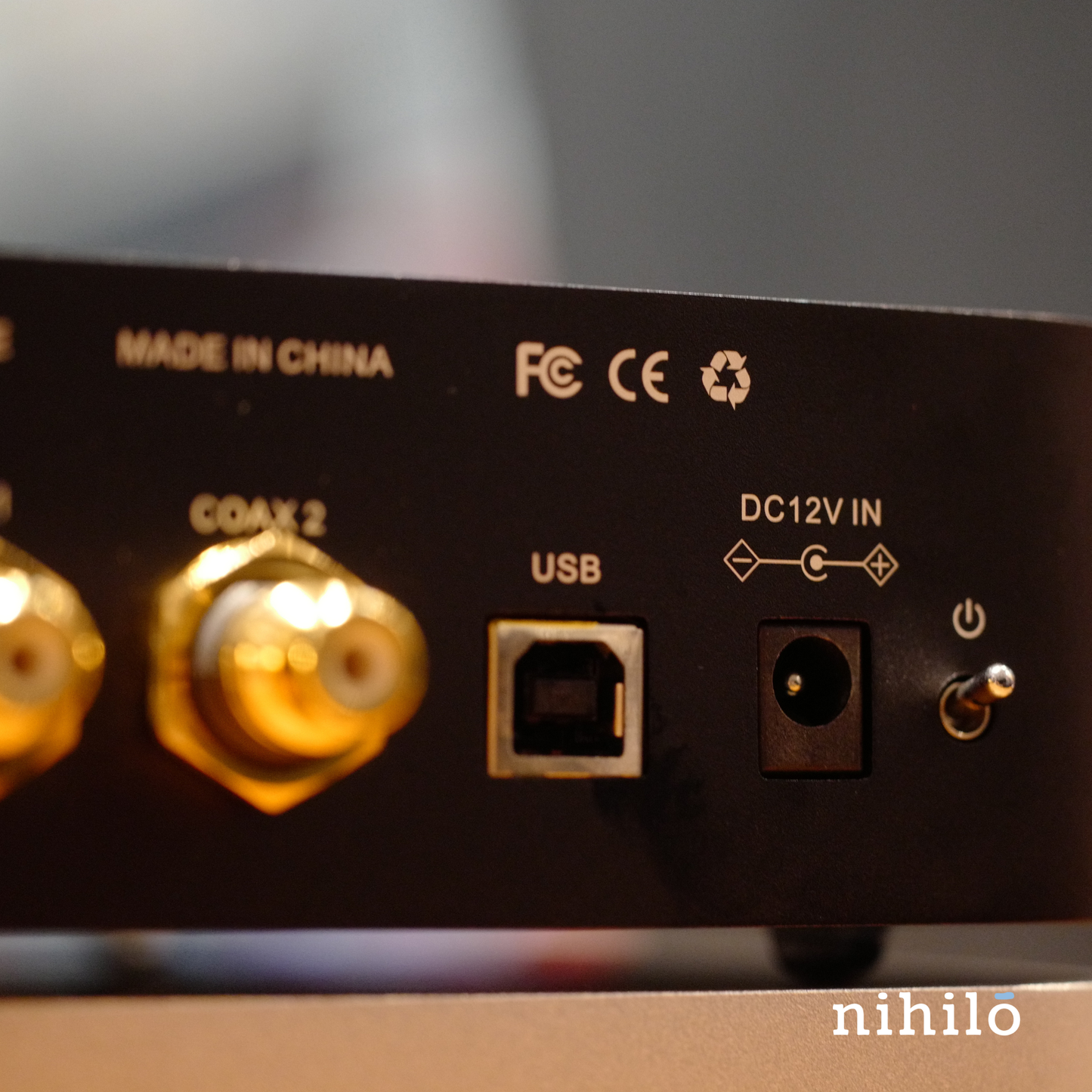

Input power: DC12V 2A (range: 11-13V, >500mA), 5.5 x 2.1mm, positive inside and negative outside
Power consumption of whole machine: <5W
Systems supported: Windows (ASIO driver), Mac, Android, iOS, Linux (drive-free)
Size: 197 x 197 x 45mm (Not including exposed sockets and foot mats)
Product weight 1.29kg
Package list: QU02 unit, USB Cable(USB-A to B, L=1.5M), Instruction Manual, DC12V 2A Power Supply (Input AC110~240V)
